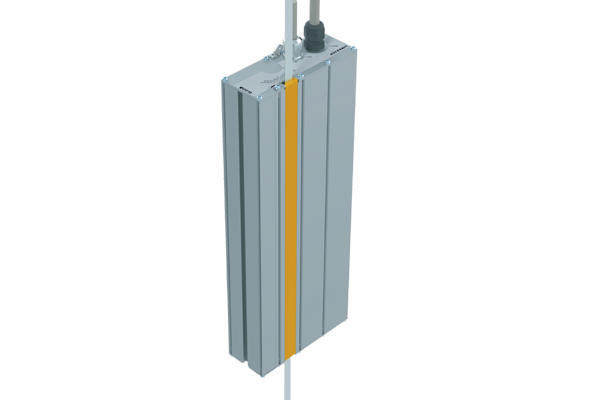

Limax Shaft Encoder

Interested in this product?

Simply fill out our online enquiry form and we will get back to you...

Key Features

The integration with the Ethos through the serial CAN-bus and pre-wired looms makes the installation fast and easy.

To satisfy functional safety requirements, the LIMAX3CP absolute car position measurement sensors have full redundancy and thus can be used for safety relevant applications up to SIL3.

Safety-relevant switching and control functions that depend on the position and the speed of the car can be implemented in the software:• Overspeed monitoring and safety gear tripping.

  • Final limit switches top and bottom
  • ETSL Device for reduced buffer stroke
  • Lock bridging and unintended car movement
  • Inspection Limits
  • Pre-triggering to EN81-21

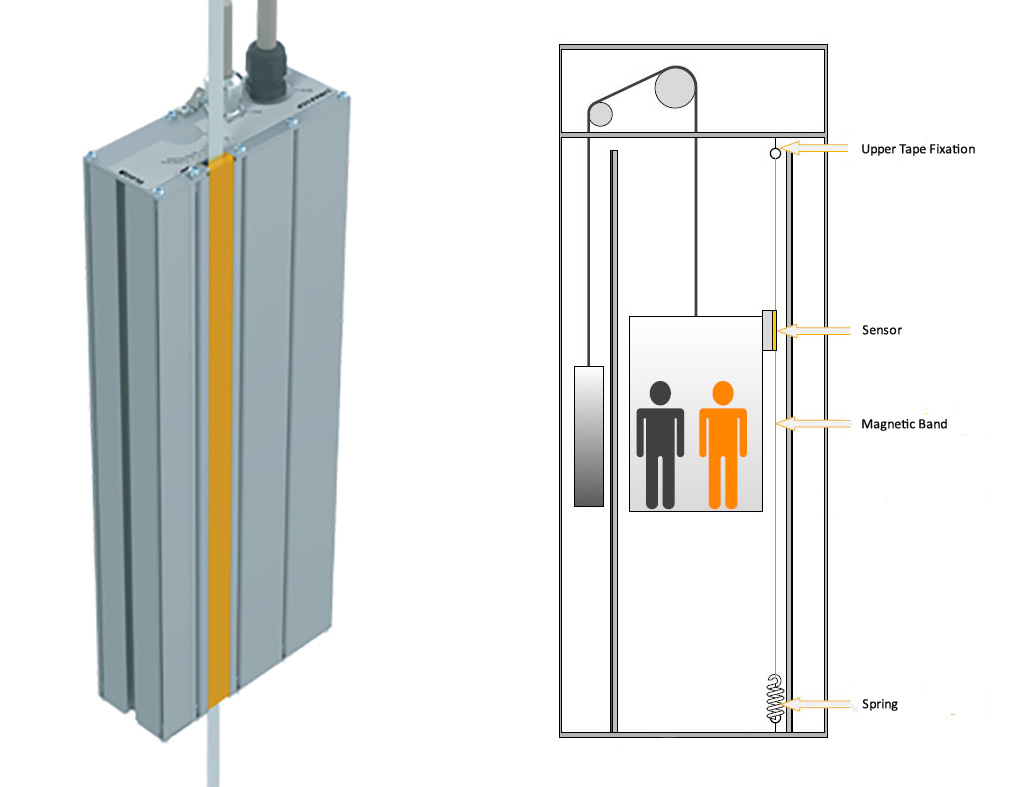

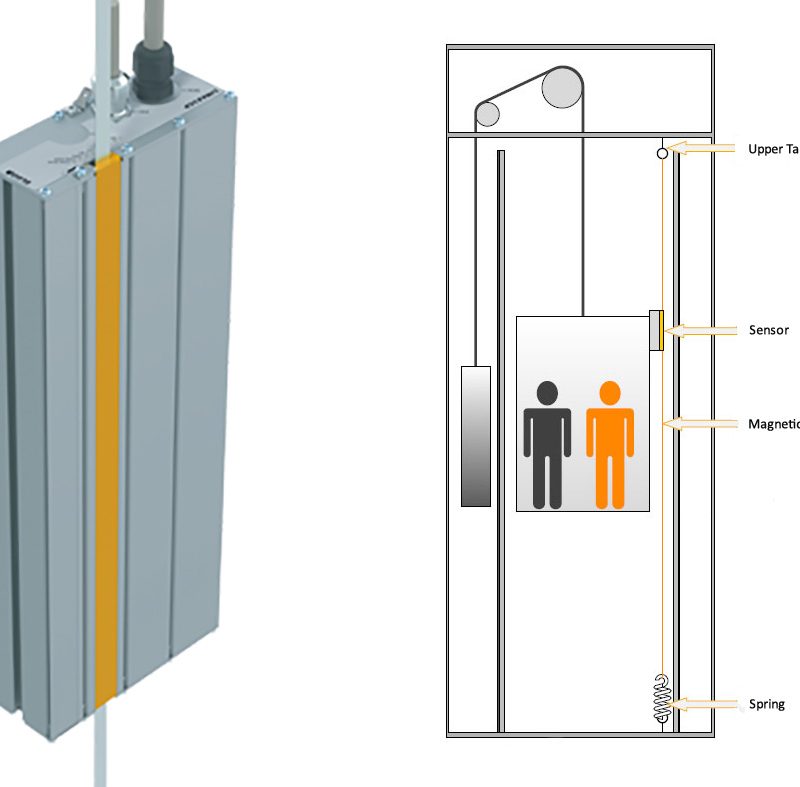

With the LIMAX3CP shaft information and safety system, several formerly mechanical components and subsystems in the shaft can be dispensed with:

  • Final limit switches and actuating ramp
  • Inspection limit switches
  • Overspeed governor and rope
  • Moveable stops for reduced headroom/pit depth
