Key Features

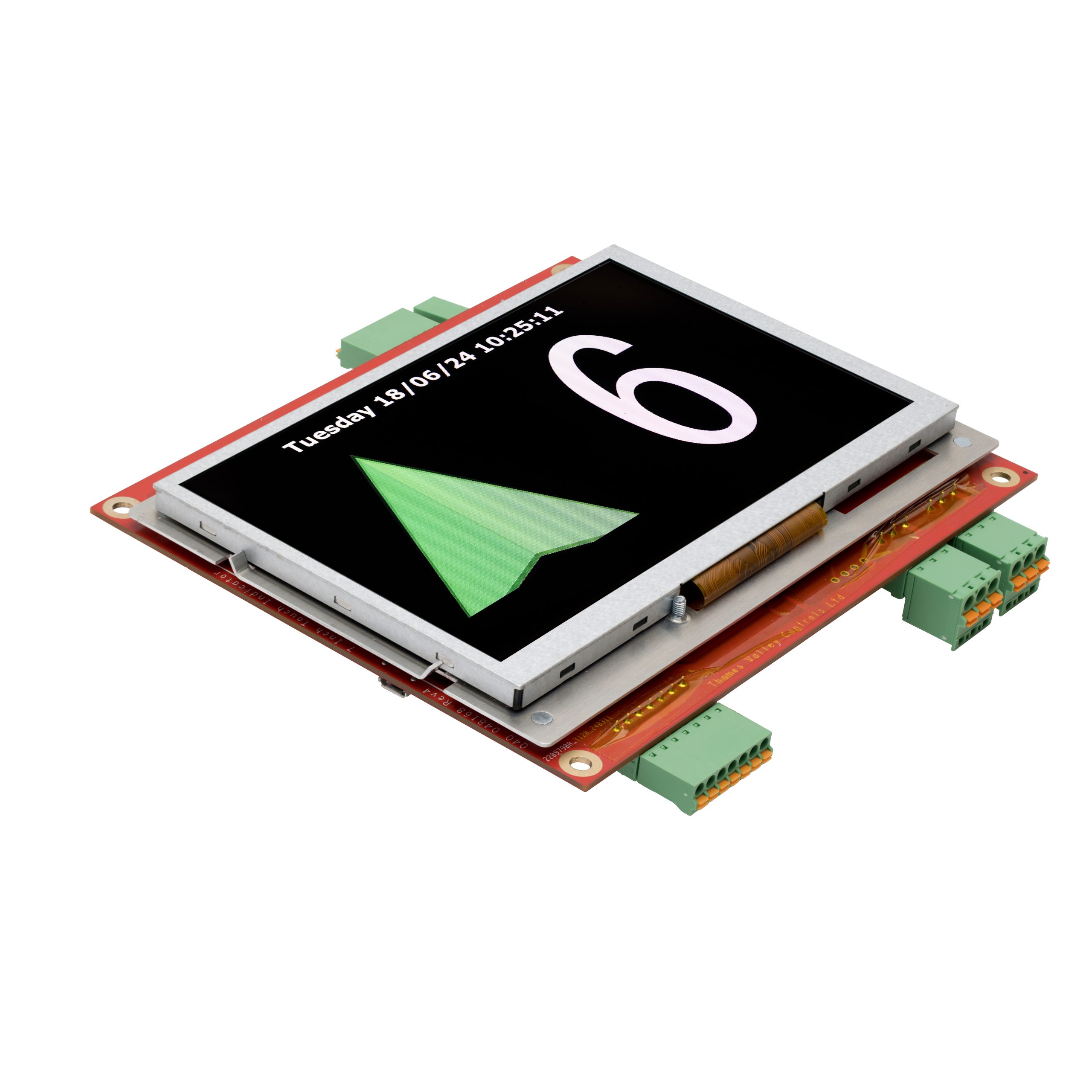

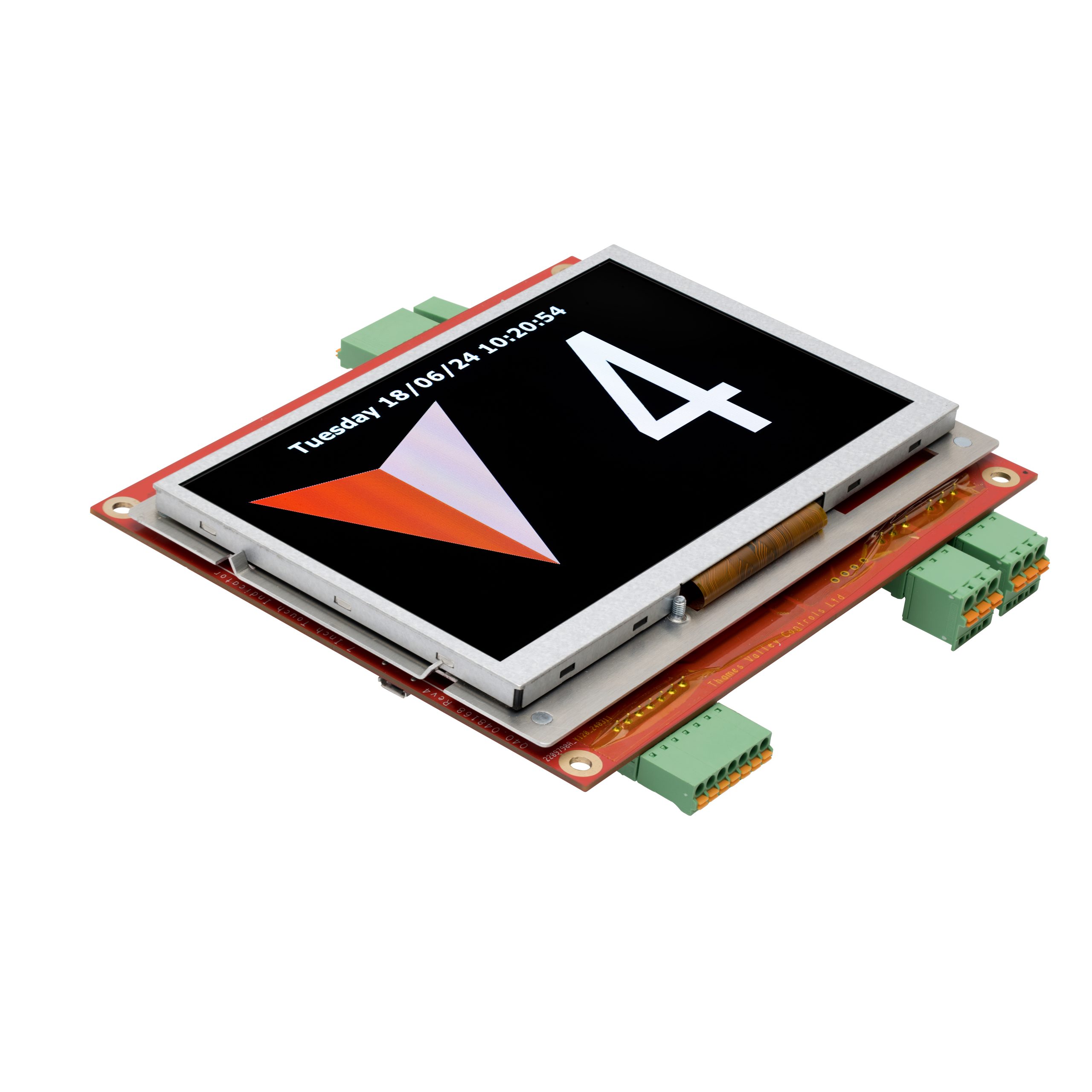

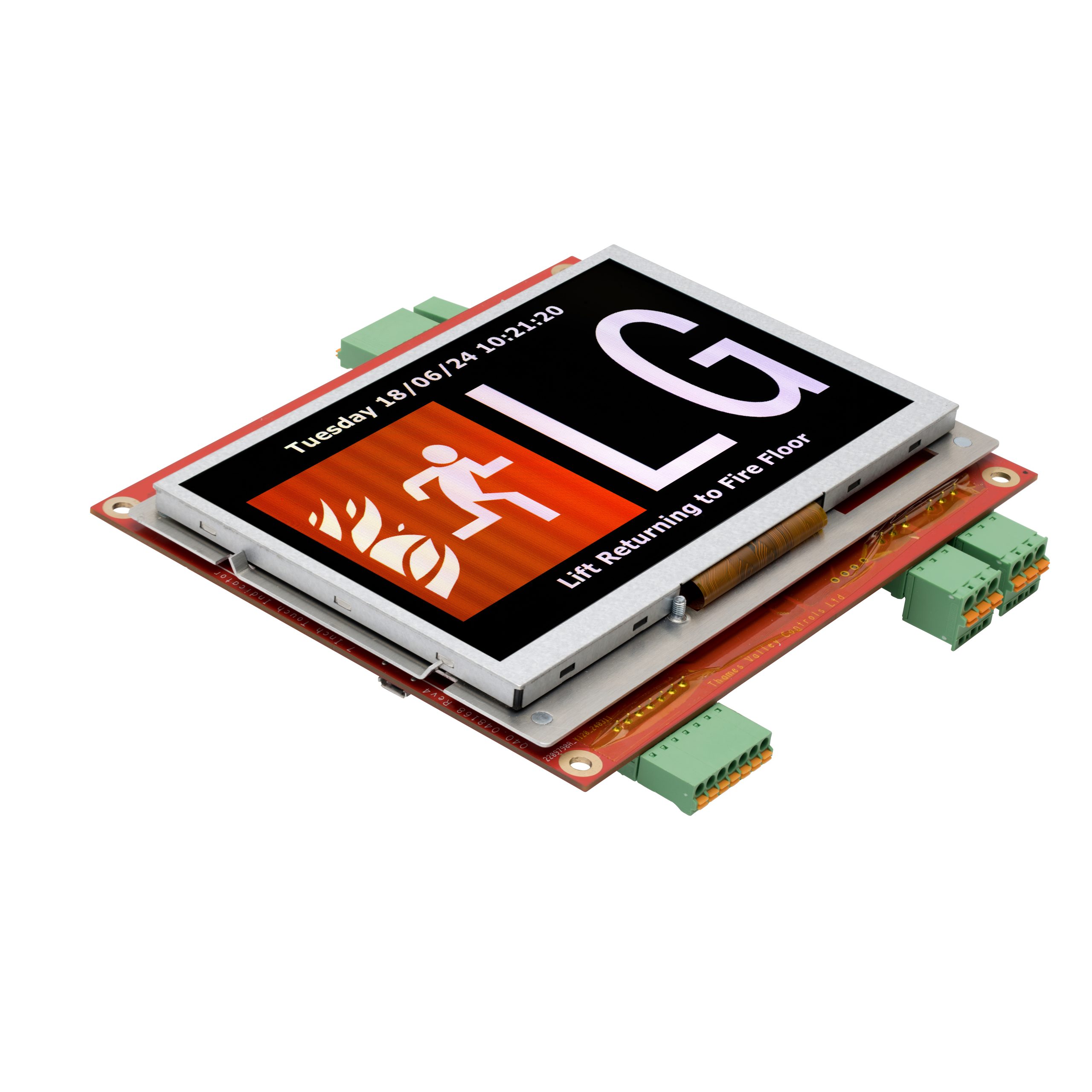

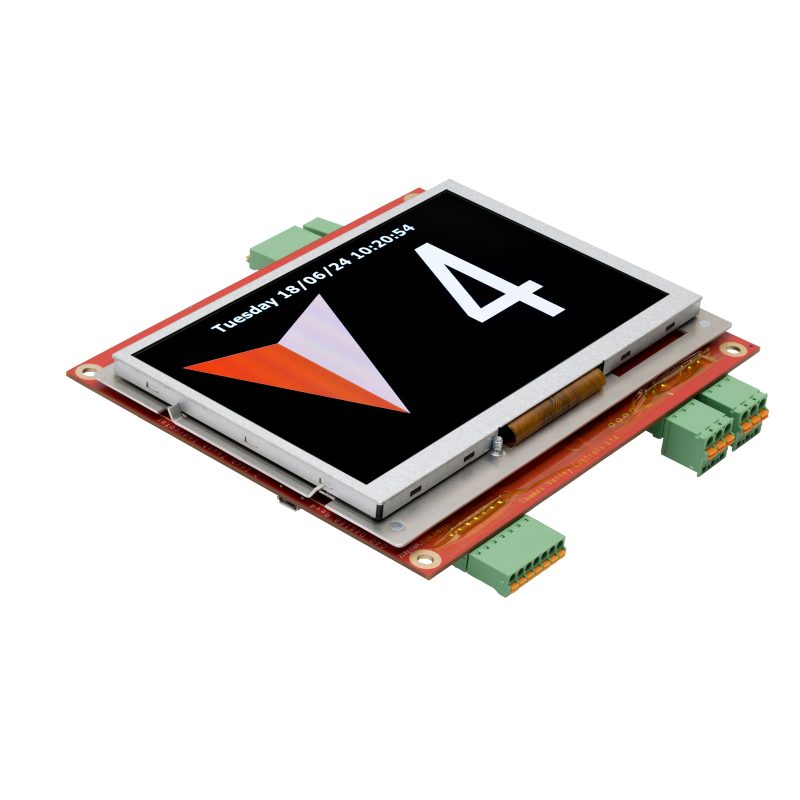

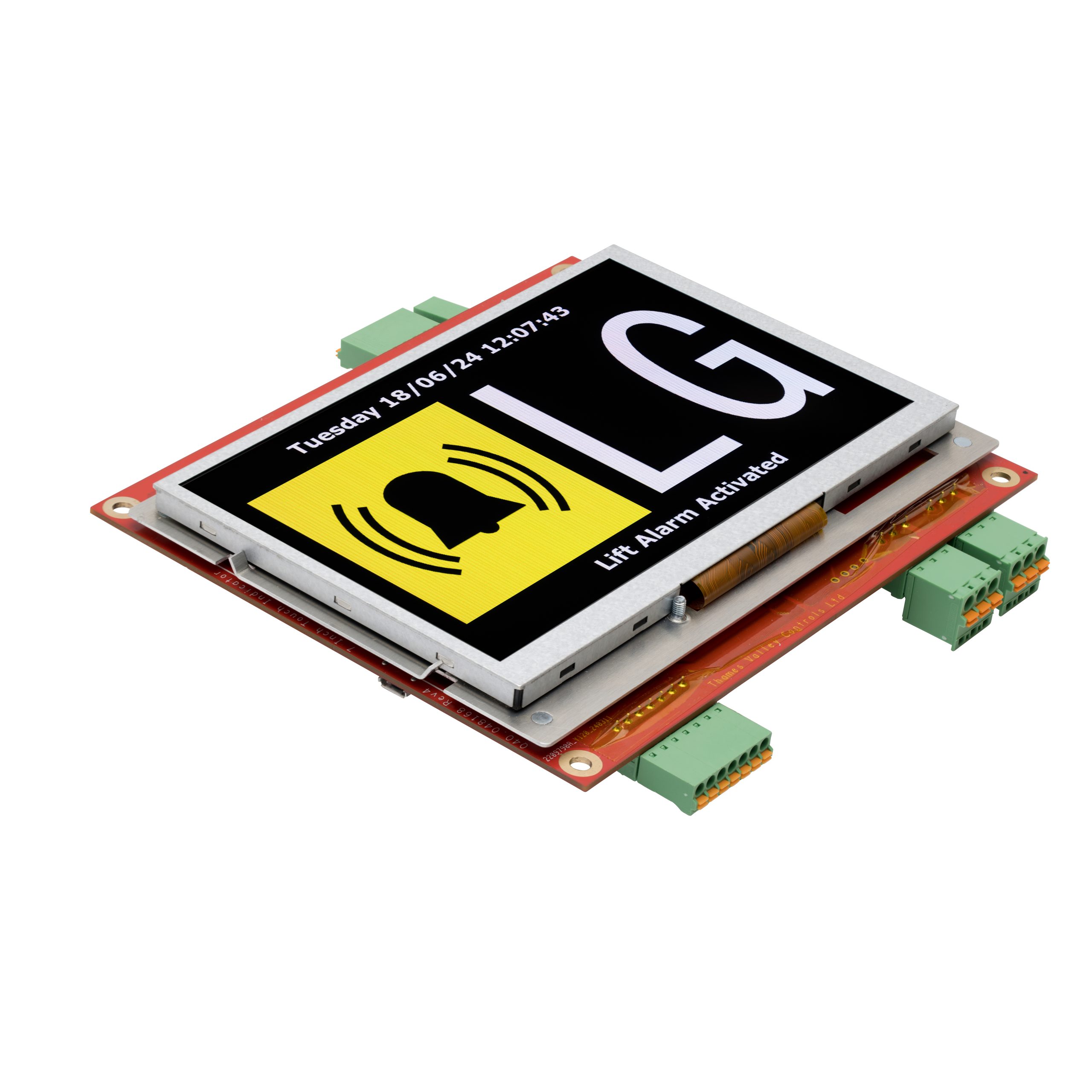

Our new indicators are available in 5″ or 7″ IPS TFT screens with wide viewing area with touch option for in-car versions.

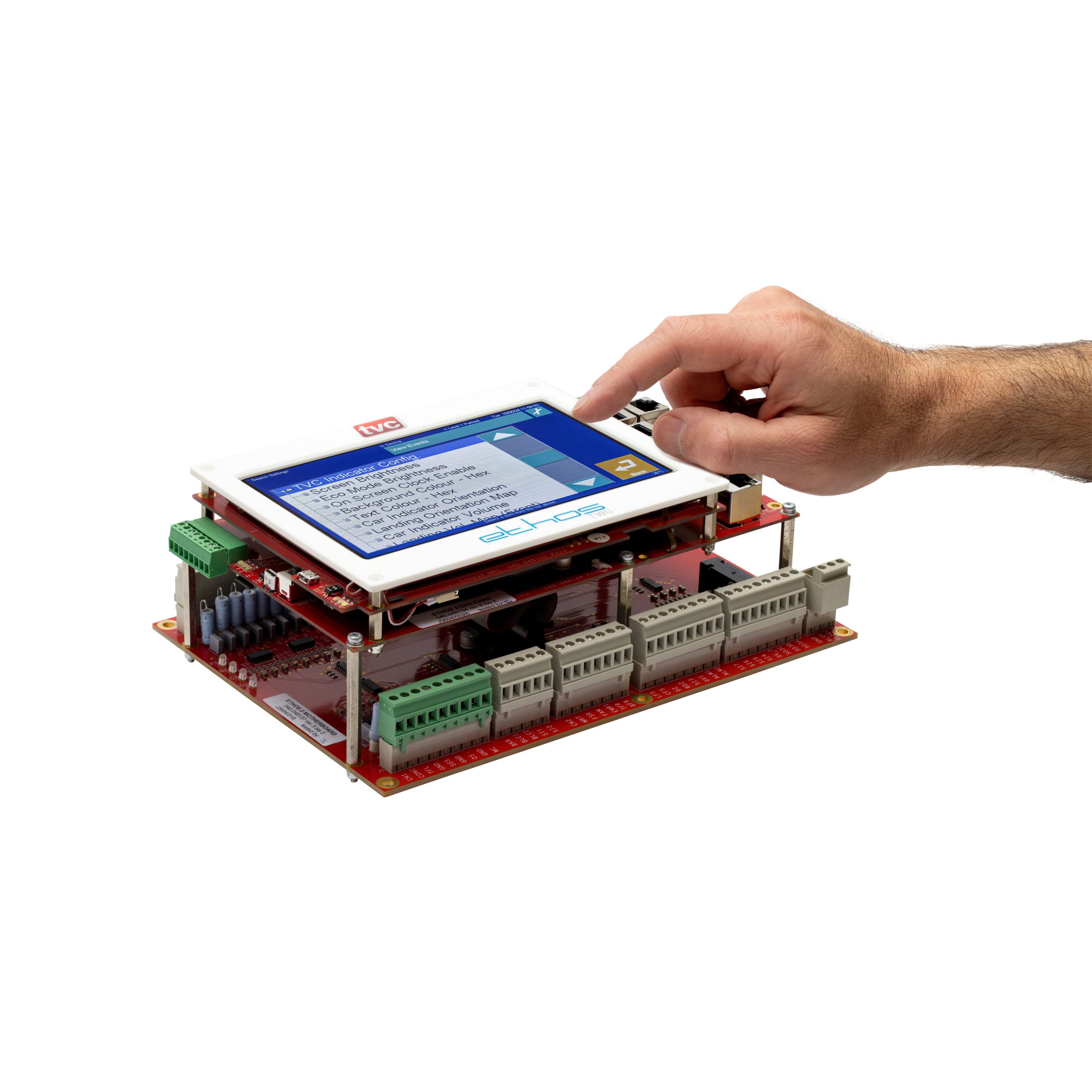

Simple programming via the Ethos MMI make changes so quick and easy.  There is no encoder required, CAN connection is via the Ethos MMI and has built in speech and gong.

The screens are full colour IPS LCD display: Size = 7 inch and 5 inch both 800×480 dots, Wide viewing angle 80/80/80/80 (IPS), 16.7M RGB colours, LED backlight with brightness 800 cd/m².

The units will act as a speech unit whilst in car mode or as a gong and call acceptance buzzer in landing mode.

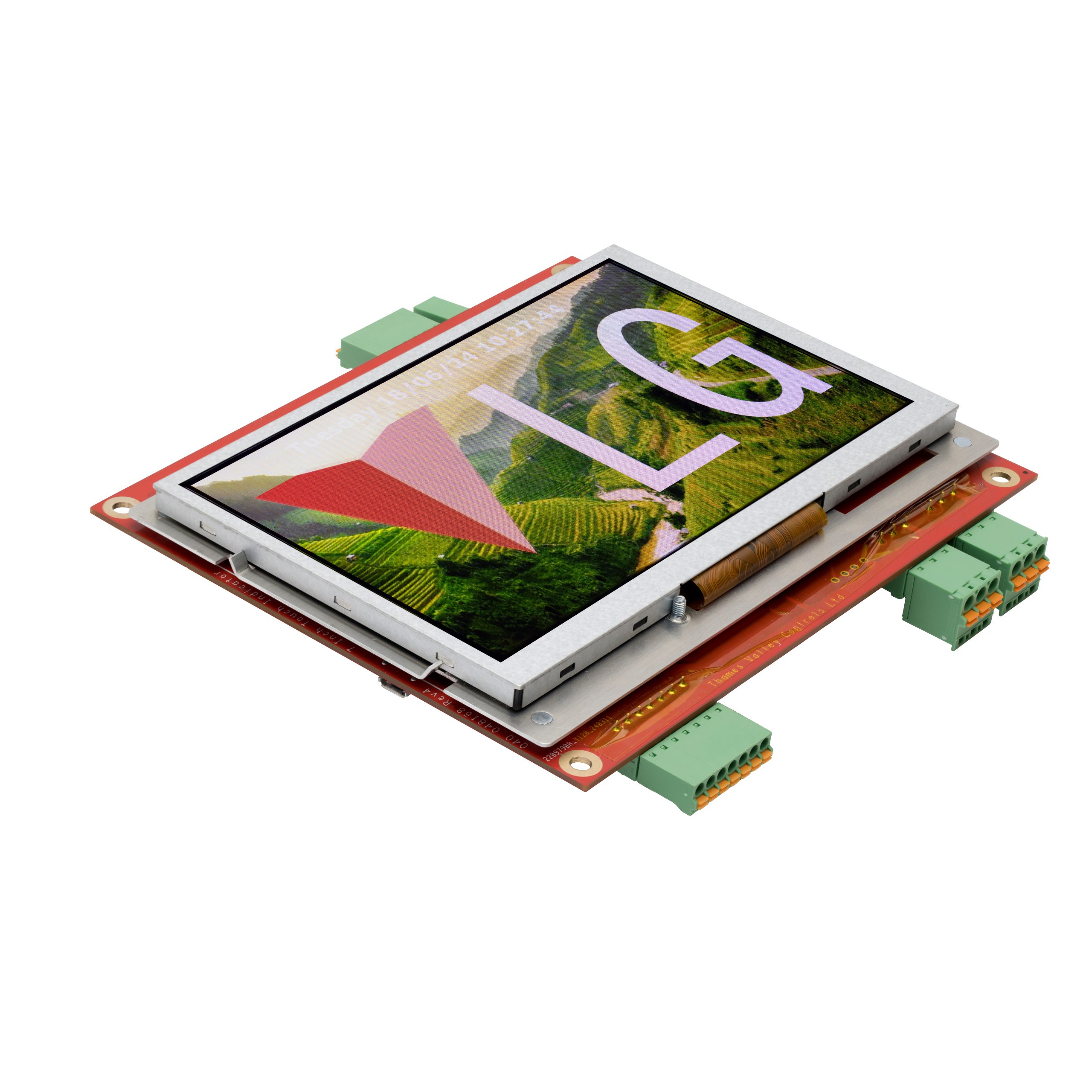

Speech phrases and optional screen background picture can be loaded on the built in SD card via the USB mini connector.

The indicator also has provision to interface to 2 landing call pushes and a feature input.

Ethos Two Eco mode compatible – will dim LED backlight to save power.  The unit is a slim 30mm deep supplied with a drilled and rebated Polycarbonate lens (4mm thick, clear) or bezel frame in touch option with fixing and spacers.

• IPS TFT 5” and 7” screen sizes
• No encoder required
• Simple programming via Ethos MMI
• Built in speech and gong
• Speech configurable via SD card
• Vandal resistant lens
• CAN connection via Ethos MMI
• Wide viewing area
