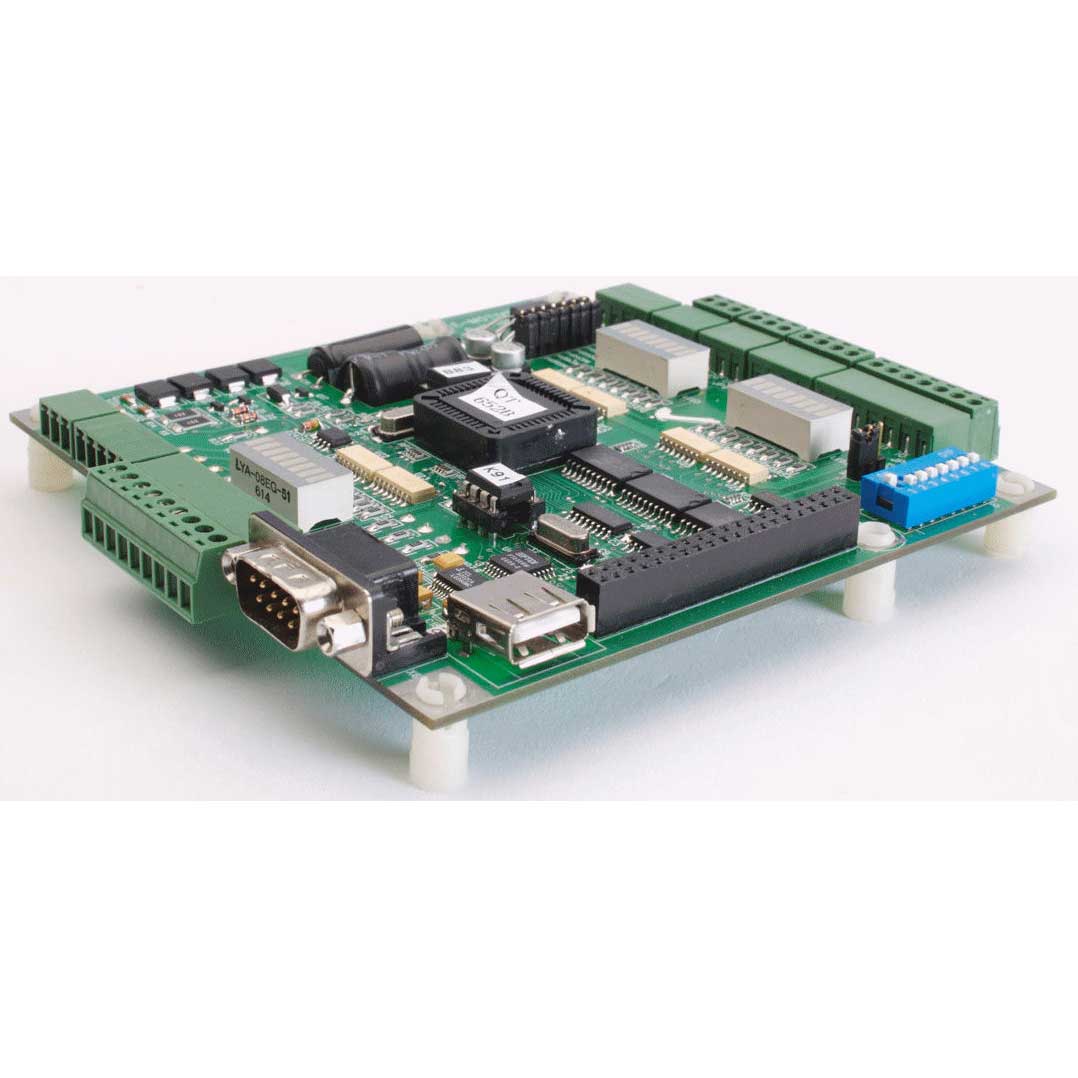

CX-Basic Encoder Board

Interested in this product?

Simply fill out our online enquiry form and we will get back to you...

Key Features

The Serial Encoder Card CX-Basic is designed to be used in conjunction with serial controlled display units. The encoder has serial communication ports, SER1, SER2 and USB port and is installed in the lift machine room, next to the lift controller. It accepts signals like floor position code, directional arrows as well as lift status signals like MAINTENANCE, OVERLOAD, OUT OF ORDER etc. through 24 optoisolated inputs. The signals are then transmitted through SER1, which is a 4-wire serial communication link, to all the display units connected to it.

  • Designed to be used in conjunction with serial controlled display unit
  • 24 opto inputs (12-24V ac/dc)
  • On board LED’s to monitor inputs
  • Floor inputs can be programmed: One per floor, binary or Gray
  • Direction, doors opening/closing and gong control inputs are standard
  • Speech synthesiser option can be added by plugging in the CX-Speech Board
  • To add 16 additional inputs or add Real Time Clock (clock/date function on LCD displays) or add on board programming display (LCD) the CX-Synchro Board can also be plugged in
